BOGE C10L (C10LR/C10LDR) Screw Compressor

BOGE C10L (C10LR/C10LDR) Screw Air Compressor IP55 F Class 7.5kW
  • 7.5kW 3 phase electric motor, 10hp
  • 37.1 cfm, 1.05 m3/min 8 bar
  • 36.4 cfm 1.03 m3/min 10 bar
Clear

Description

BOGE C10L (C10LR/C10LDR) Screw Air Compressor IP55 F Class 7.5kW
  • 7.5kW 3 phase electric motor, 10hp
  • 37.1 cfm, 1.05 m3/min 8 bar
  • 36.4 cfm 1.03 m3/min 10 bar
  • 8 bar/115 psig maximum pressure
  • 10 bar/150 psig maximum pressure
  • Extremely quiet at only 59.5 dB (A)
  • LCD Pressure Transducer BASIC control panel with 24v control voltage as standard
  • Aftercooler as standard – Discharge air is kept at only 10C or 15C above ambient, with frost protection control
  • 1170 (W) x 600 (D) x 600 (H) base unit, 1815 (W) x 720 (D) x 1350 (H) inc receiver, 1960(W) x 720 (D) x 1350 (H) inc receiver and dryer (without sound insulating hood)
  • 1500 (W) x 784 (D) x 800 (H) base unit, 1820 (W) x 835 (D) x 1495 (H) inc receiver, 2040 (W) x 835 (D) x 1500 (H) inc receiver and dryer (with sound insulating hood)
  • 260kg base unit 8 bar/10 bar, 350kg inc receiver 8 bar/10 bar, 380kg inc receiver and dryer 8 bar/10 bar (unpacked weight without sound insulating hood)
  • 395kg base unit 8 bar/10 bar, 515kg inc receiver 8 bar/10 bar, 550kg inc receiver and dryer 8 bar/10 bar (unpacked weight with sound insulating hood)
  • Delivery generally ex-stock

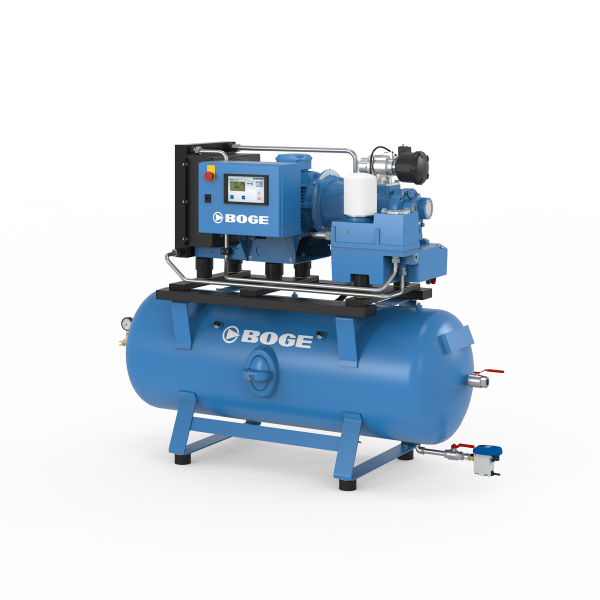

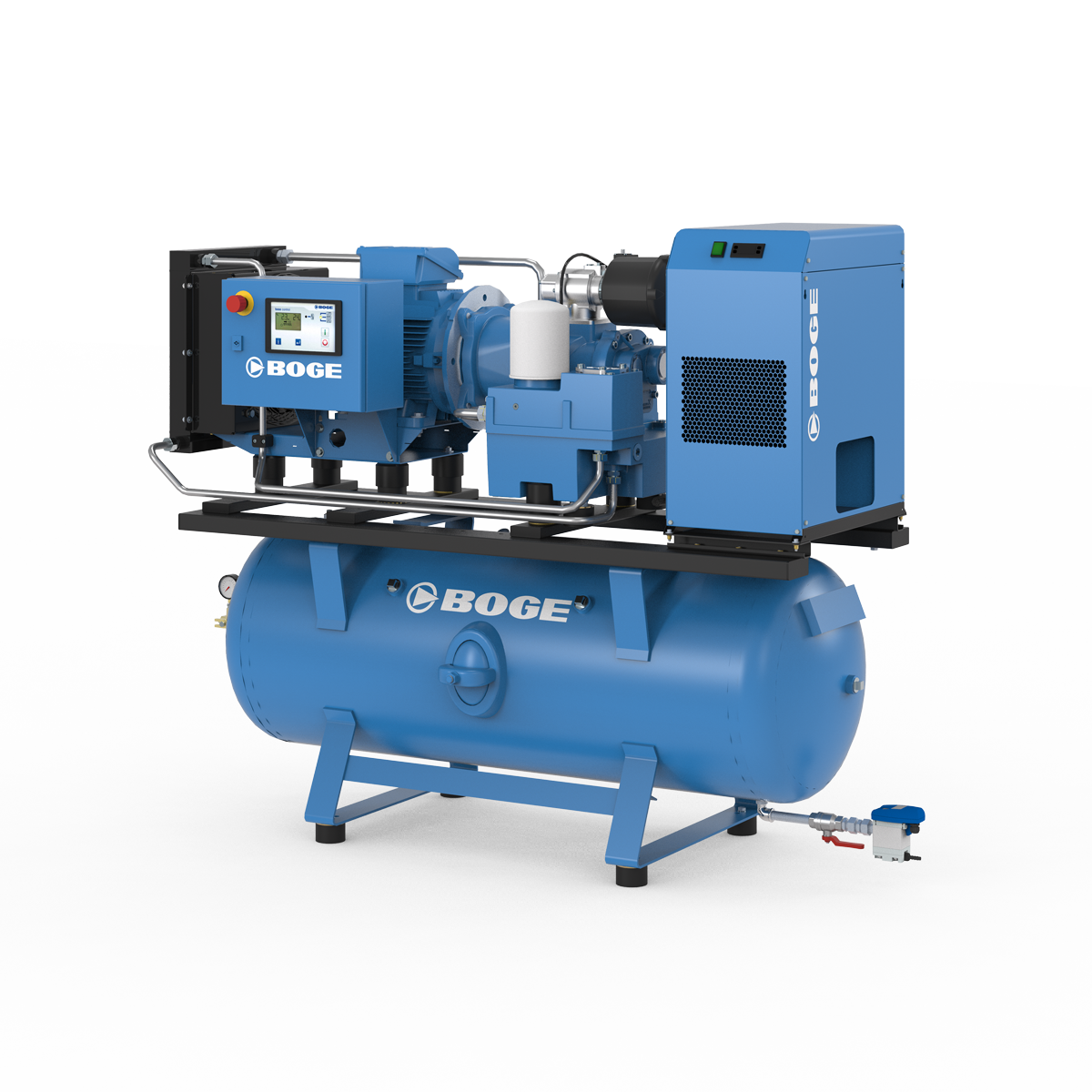

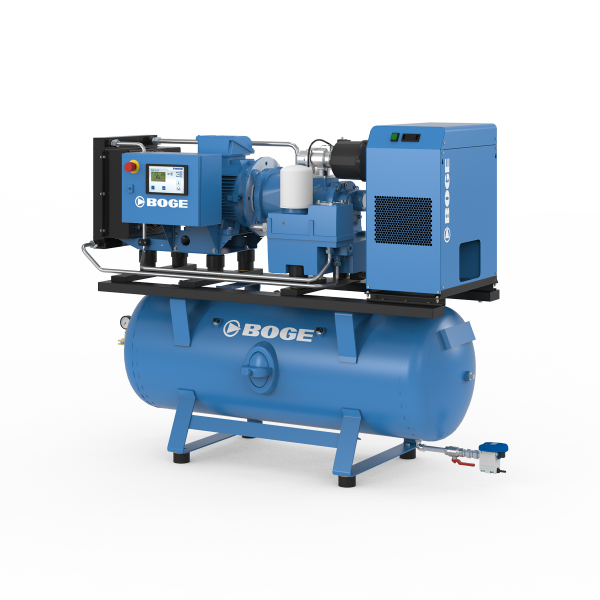

Available with no receiver – base unit only – C10L, an RM 350 Litre receiver mounted – C10LR or with an RM 350 Litre receiver with dryer – C10LDR (cost will change accordingly). Please pick from the above dropdown to enable purchase.

Available with the following pressure options: “8 bar” and “10 bar”. Please pick from the above dropdown to enable purchase.

Also available with sound insulating hood for an additional cost. Please pick ‘Included’ from the above dropdown if required.





Additional information

Weight N/A
Add receiver

No receiver, 350 Litre, 350 Litre with dryer

Sound insulating hood

Not included, Included

Pressure

8 bar, 10 bar

Cubic Feet per Minute (cfm)

,

Horsepower (HP)

Manufacturer

Max Electrical Consumption (kW)

Max Working Pressure (bar)

,

Range

Receiver Size

,
