BOGE C7L (C7LR/C7LDR) Screw Compressor

BOGE C7L (C7LR/C7LDR) Screw Air Compressor IP55 F Class 5.5kW
  • 5.5kW 3 phase electric motor, 7.5hp
  • 25.0 cfm, 0.707 m3/min 10 bar
  • 18.5 cfm 0.525 m3/min 13 bar
Clear

Description

BOGE C7L (C7LR/C7LDR) Screw Air Compressor IP55 F Class 5.5kW
  • 5.5kW 3 phase electric motor, 7.5hp
  • 25.0 cfm, 0.707 m3/min 10 bar
  • 18.5 cfm 0.525 m3/min 13 bar
  • 10 bar/150 psig maximum pressure
  • 13 bar/190 psig maximum pressure
  • Extremely quiet at only 61 dB (A)
  • LCD Pressure Transducer BASIC control panel with 24v control voltage as standard
  • Aftercooler as standard – Discharge air is kept at only 10C or 15C above ambient, with frost protection control
  • 817 (W) x 520 (D) x 495 (H) base unit, 1185 (W) x 550 (D) x 1010 (H) inc receiver, 1723 (W) x 642 (D) x 1205 (H) inc receiver and dryer
  • 130kg base unit 10 bar/13 bar, 180kg inc receiver 10 bar/205kg inc receiver 13 bar, 250kg inc receiver and dryer 10 bar/300kg inc receiver and dryer 13 bar (unpacked weight)
  • Delivery generally ex-stock

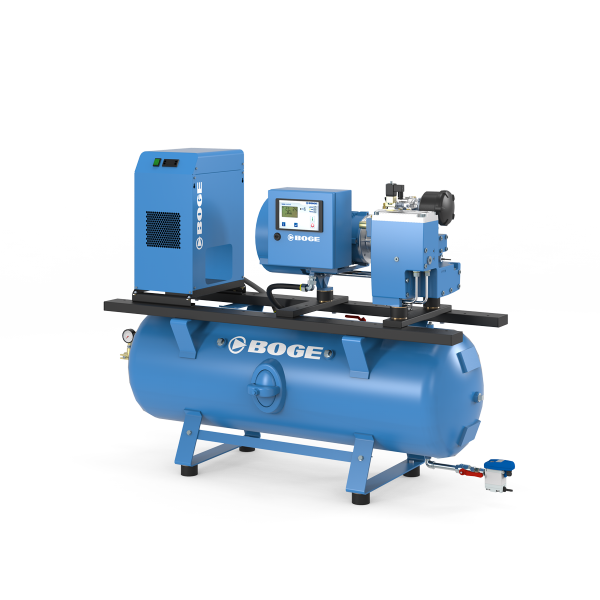

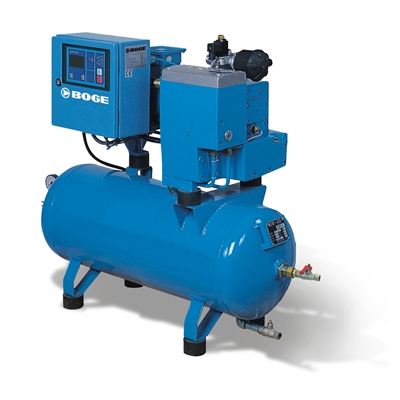

Available with no receiver – base unit only – C7L, a 90 Litre receiver mounted – C7LR or with a 270 Litre receiver with dryer – C7LDR (cost will change accordingly). Please pick from the above dropdown to enable purchase.

Available with the following pressure options: “10 bar” and “13 bar”. Please pick from the above dropdown to enable purchase.

Also available with sound insulating hood for an additional cost. Please pick ‘Included’ from the above dropdown if required.

– Contact us about other C7L options including 230v single phase supply food grade oil and short run control systems –





Additional information

Weight N/A
Add receiver

No receiver, 90 Litre, 270 Litre with dryer

Sound insulating hood

Not included, Included

Pressure

10 bar, 13 bar

Brand

BOGE

Cubic Feet per Minute (cfm)

,

Horsepower (HP)

Manufacturer

Max Electrical Consumption (kW)

Max Working Pressure (bar)

,

Range

Receiver Size

,
