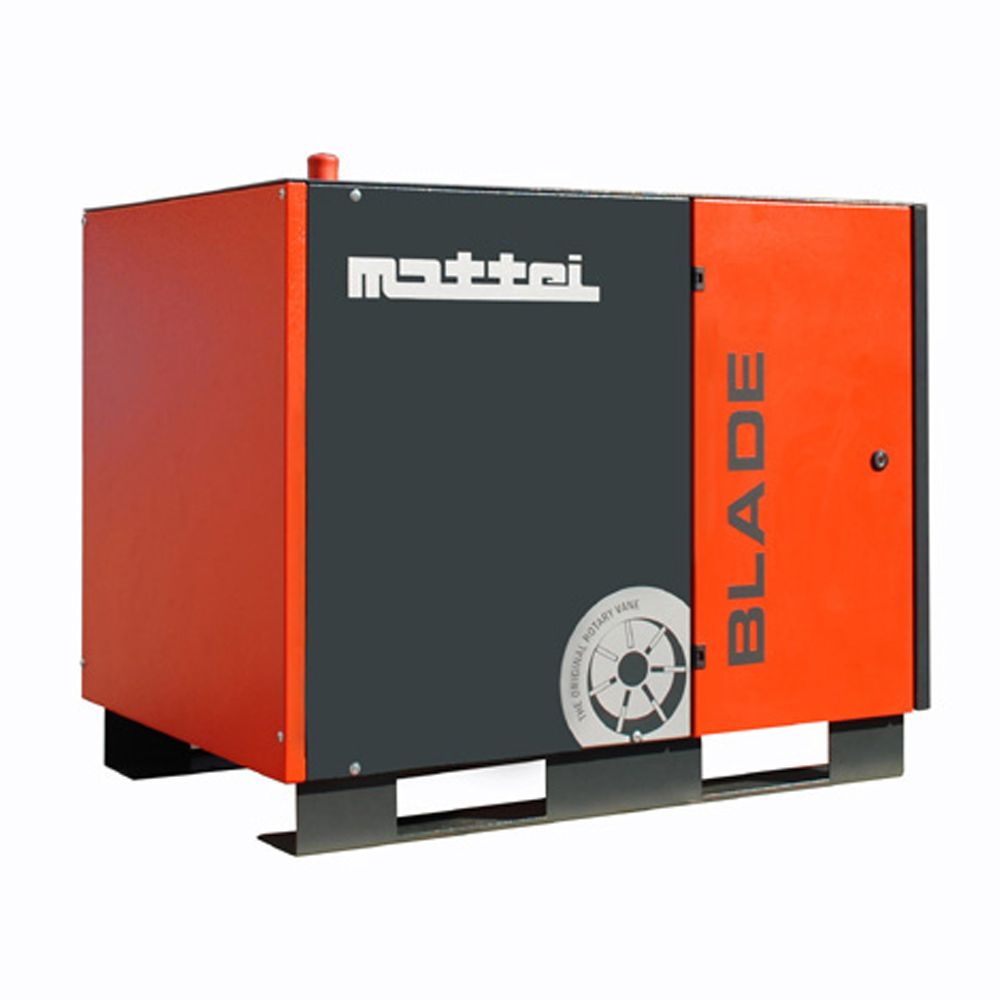

Mattei BLADE 5 L (S/SE) Air Compressor

Mattei BLADE 5 L Air Compressor with receiver and dryer options
  • 5.5kW 7.5hp motor
  • 8 bar 115 psig model – 0.902 m3/min 32 cfm
  • 10 bar 145 psig model – 0.825 m3/min 29 cfm
  • 13 bar 189 psig model – 0.733 m3/min 26 cfm
Clear

Description

Mattei BLADE 5 L Air Compressor with receiver and dryer options

Compared to other compressors, the BLADE’s very low rotational speed, a distinctive feature of a Mattei compressor, means more air, greater reliability, reduced energy consumption and quiet operation. This range leverages Mattei’s proprietary rotary vane technology with a dual belt transmission, housed with a sleek, powder coated cabinet. Specification includes:

  • 5.5kW 7.5hp motor
  • 8 bar 115 psig model – 0.902 m3/min 32 cfm
  • 10 bar 145 psig model – 0.825 m3/min 29 cfm
  • 13 bar 189 psig model – 0.733 m3/min 26 cfm
  • 62 dB(A)
  • 950mm (L) x 730mm (W) x 800mm (H) (base unit)
  • 1530mm (L) x 730mm (W) x 1340mm (H) (base unit plus receiver)
  • 400V/50HZ/3
  • 5 year unlimited hours air end warranty
  • 2 year warranty on other key components
  • 185kg base unit, 260kg inc receiver, 285kg inc receiver and dryer (unpacked weight)

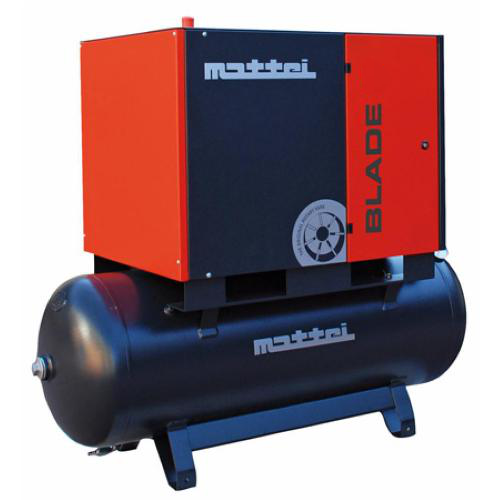

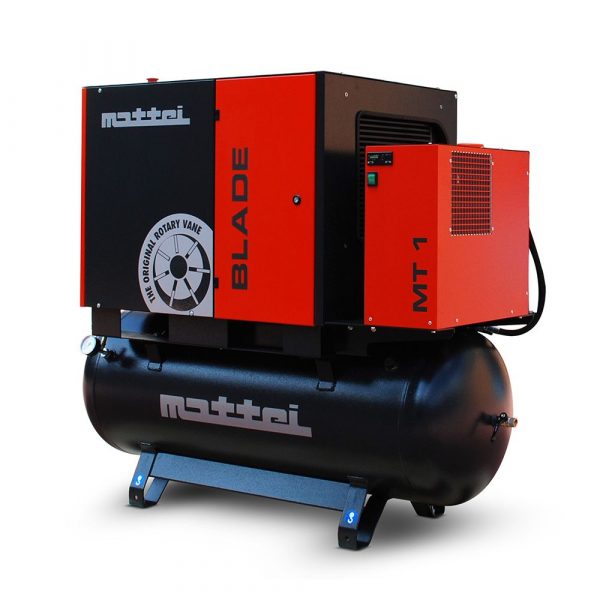

Available with no receiver (base unit only), a 270 Litre receiver mounted – BLADE S or with a 270 Litre receiver with dryer – BLADE SE (cost will change accordingly). Please pick from the above dropdown to enable purchase.

Also available in the following models: “8 bar/115 psi”, “10 bar/145 psi” and “13 bar/189 psi” (cost will change accordingly). Please pick from the above secondary dropdown to enable purchase.

Additional information

Weight N/A
Add receiver

No receiver, 270 Litre, 270 Litre with dryer

Model

8 bar/115 psi, 10 bar/145 psi, 13 bar/189 psi

Cubic Feet per Minute (cfm)

, ,

Horsepower (HP)

Manufacturer

Max Electrical Consumption (kW)

Max Working Pressure (bar)

, ,

Range

Receiver Size

,
